Condition Monitoring

These extremely reliable and portable, low cost instruments are specifically designed for on site maintenance in your plant or workshop. They are easy to use and requires little operator training.

All models are housed in a robust metal casing and have large easy to read LCD displays.

They are supplied with a magnetic mount to eliminate hand held measuring variations.

Temperature Range: 0 - 50 °C

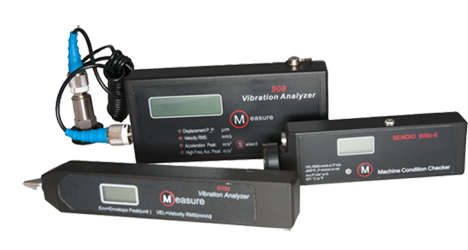

Model 909z

Measures acceleration envelope in higher frequencies caused by faulty rolling elements of bearings and gear mesh problems. Measures vibration caused by rotational and structural problems like imbalance and misalignment.

Features:

  • Small pen-size with accelerator included.
  • Hold function.
  • Automatic power off.
  • 4 LCD digital display, sampling per second.
  • Small size, transducer included, battery powered, no other component required.
  • Accelerometer with handheld probe and/or magnetic mount.
  • One button control power, parameter selector, measurement and holding.
  • Measure vibration velocity for overall evaluation of the machine health (caused by rotational and structural problems like imbalance, misalignment, looseness, etc.)
  • Measure acceleration envelop in higher frequencies (caused by rolling element bearing or gear mesh problems).


For more information and specifications please download the brochure from the link below.



 Download brochure

Model 909z-6

Multi-parameter vibration & temperature measuring. Measures Acceleration, Velocity, Displacement, Enveloped Acceleration, Infra red surface temperature and Averaged Peak Temperature.

Features:

  • Small pen-size with accelerator included.
  • Automatic power off.
  • 4 digital LCD display.
  • Displays both Metric & Imperial Units.
  • Multi-parameter vibration, bearing parameter (acceleration envelope) & IR temperature measurements.
  • One button control power, parameter selection, ISO10816 group selection, measurement and hold function.
  • Includes remote switch and magnet base to avoid handheld problems for reliable and consistent data.
  • Measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green LED indicator.
  • Build-in ISO10816 Group 2 & -3 selectable.
  • Optional external or integrated accelerometer.
  • Optional magnet base and remote switch.


For more information and specifications please download the brochure from the link below.



 Download brochure

Model 908

Multi-parameter instrument measuring vibration velocity, displacement, acceleration and high frequency acceleration.

Features:

  • Measuring vibration velocity, displacement, acceleration and high frequency acceleration.
  • Hold function.
  • Automatic power off.
  • 3 ½ LCD digital display, sampling per second.
  • Small size, transducer included, battery powered, no other component required.
  • Accelerometer with handheld probe and/or magnetic mount.
  • One button control both power and measurement. Very easy for use.
  • Suitable for monitoring machinery vibration caused by out-of-balance, misalignment, gear damage, bearing faults and etc.


For more information and specifications please download the brochure from the link below.



 Download brochure
