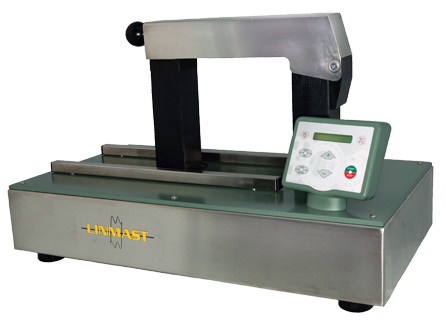

LBH90D

A bench model of large capacity suitable for heating large size bearings and parts up to 90kg.

Mostly used in large production, maintenance or assembly workshops in such industries as earthmoving, rail, power station industry, electric motors, pumps, gearboxes, power transmission, petrol-chemical, chemical, air-conditioning and manufacturing.

Capacity 3.6 kVA
Duty Continuous
Voltage 220/240 V
Frequency 50/60 Hz
Max. Temp 250°C
Efficient Heat Limit 70 kg
Unit Weight 50 kg
Unit Dimensions
(l x w x h) 		650 x 360 x 420 mm
Core Dimensions - A
(Dia. over Core) 		60 x 60 mm
(Dia. 86 mm)
Pole Height - B 185 mm
Pole Separation - C 200 mm
Cross Bars - D
(minimum Dia.) 		20 x 20 (29mm ø)
30 x 30 (44mm ø)
