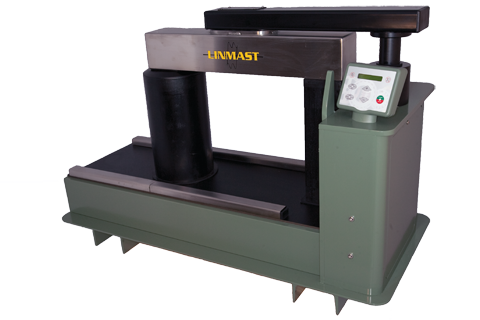

LBH160D

A turbo heavy-duty skid model suitable for rapid heating of heavy duty heavy bearings and parts up to 650kg.

Mostly used in heavy duty machinery or large assembly workshops, in such industries as earthmoving, rail, gearboxes, power transmission, power stations, steel industry, mining and wind power.

Capacity 25 kVA
Duty Continuous
Voltage 380/460 V
Frequency 50/60 Hz
Max. Temp 250°C
Efficient Heat Limit 800 kg
Unit Weight 330 kg
Unit Dimensions
(l x w x h) 		1110 x 500 x 720 mm
Core Dimensions - A
(Dia. over Core) 		100 x 100 mm
(Dia. 190)
Pole Height - B 325 mm
Pole Separation - C 350 mm
Cross Bars - D
(minimum Dia.) 		80 x 80 mm (117mm ø)

LBH160DT Trolley Model

Trolley Dimension
(l x w x h) 		1110 x 500 x 880 mm
Trolley Weight 350 kg
