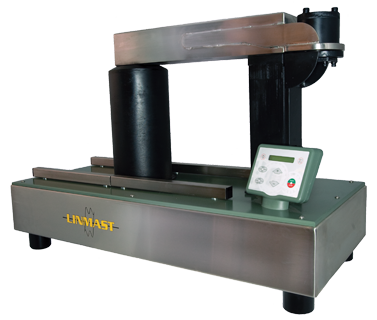

LBH120D

A turbo heavy-duty bench or trolley model suitable for rapid heating for extra large bearings and
parts up to 300kg.

Mostly used in heavy machinery or large assembly workshops, in such industries as earthmoving, rail, gearboxes, power transmission, power stations, steel industry and mining.

Capacity 12.5 kVA
Duty Continuous
Voltage 380/460 V
Frequency 50/60 Hz
Max. Temp 250°C
Efficient Heat Limit 300 kg
Unit Weight 120 kg
Unit Dimensions
(l x w x h) 		860 x 400 x 580 mm
Core Dimensions - A
(Dia. over Core) 		80 x 80 mm
(Dia. 157)
Pole Height - B 270 mm
Pole Separation - C 260 mm
Cross Bars - D
(minimum Dia.) 		40 x 40(56mm ø)
60 x 60 (86mm ø)

LBH120DT Trolley Model

Trolley Dimension
(l x w x h) 		880 x 420 x 1040 mm
Trolley Weight 150 kg
