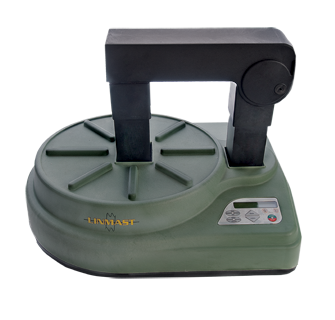

LBH70D

A portable or bench model suitable for heating medium size bearings and parts up to 40kg.

Mostly used in small to medium maintenance workshops in such industries as trucks, electric motors, pumps, gearboxes, power transmission, petrol-chemical, chemical, packaging, printing, paper, air-conditioning, municipal workshops, sugar, crane and manufacturing.

Capacity 2.2 or 3.6 kVA
Duty Continuous
Voltage 110v or 220/240 V
Frequency 50/60 Hz
Max. Temp 250°C
Efficient Heat Limit 40 kg
Unit Weight 23 kg
Unit Dimensions
(l x w x h) 		420 x 300 x 310 mm
Core Dimensions - A
(Dia. over Core) 		50 x 50 mm
(Dia. 70)
Pole Height - B 120 mm
Pole Separation - C 115 mm
Cross Bars - D
(minimum Dia.) 		15 x 15 (22mm ø)
25 x 25 (36mm ø)
